| option |
| نوع الحزمة: | كرتونة تصدير مسطحة بالدينار الكويتي مع رغوة واقية |
|---|
تحدد خزانة الشبكة ذات الحزمة المسطحة من السلسلة A معيار الصناعة لحاويات الخوادم عالية الكثافة وأنظمة الكابلات الهيكلية. يتميز حامل الخادم المتميز هذا ببنية معيارية مسطحة متقدمة KD (Knock-Down) ، وقد تم تصميمه بدقة لتحسين حجم الشحن البحري بشكل كبير، وتبسيط النقل اللوجستي، وتقليل آثار المستودعات المحلية. تم تصنيع الهيكل من الفولاذ المدلفن على البارد SPCC عالي الجودة، ويوفر قدرة تحميل ثابتة استثنائية للخدمة الشاقة جنبًا إلى جنب مع إطار متشابك للتجميع السريع والخالي من الأخطاء. إنه يوفر حلاً مثاليًا وآمنًا للغاية للإسكان المستقل لمراكز البيانات على مستوى المؤسسة وشبكات الحوسبة الطرفية ومراكز الاتصالات.
|
Freight Optimization
Flat-pack design reduces shipping volume by up to 60%, significantly lowering ocean freight costs, streamlining transit logistics, and optimizing warehouse storage utilization space.
|
Heavy-Duty Load Capacity
Reinforced structural multi-folded joints provide superior weight bearing strength, ensuring highly stable and reliable hardware support for high-density enterprise server deployments.
|
|
Rapid Toolless Assembly
Precision interlocking modular components enable exceptionally fast, error-free onsite infrastructure setup, drastically reducing configuration engineering hours and localized labor operational overheads.
|
Advanced Thermal Management
Supports multi-vented integration profiles and optional high-velocity cooling exhaust fan kits to sustain optimized airflow dynamic pathways, successfully protecting crucial hardware profiles.
|

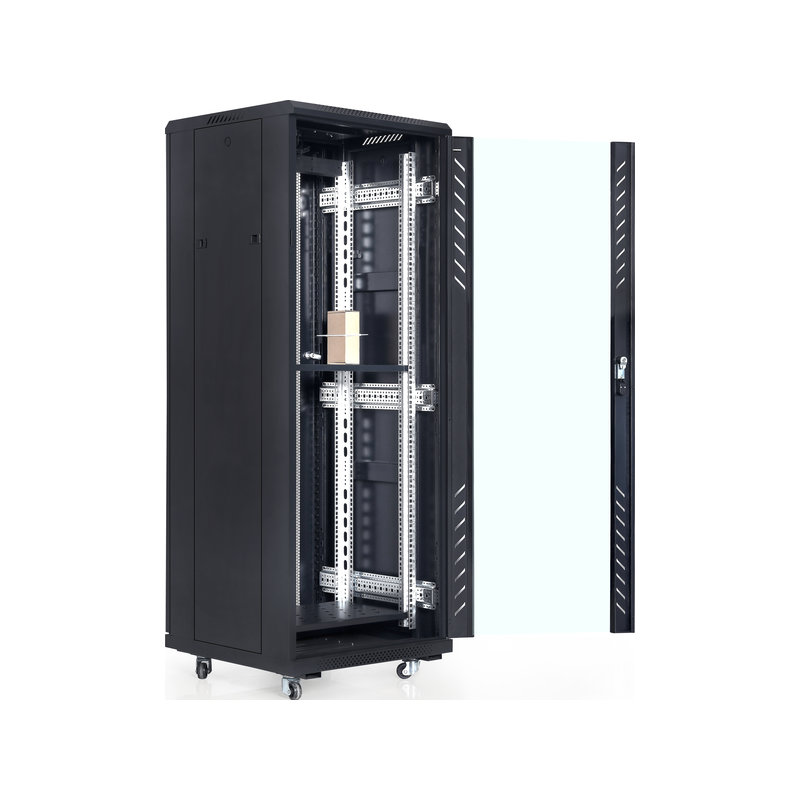

Reinforced Zinc U-Rails
Constructed from high-gauge galvanized zinc vertical mounting columns with distinct screen-printed U-height markers, delivering exceptional anti-corrosive properties and heavy-duty hardware alignment support.
|

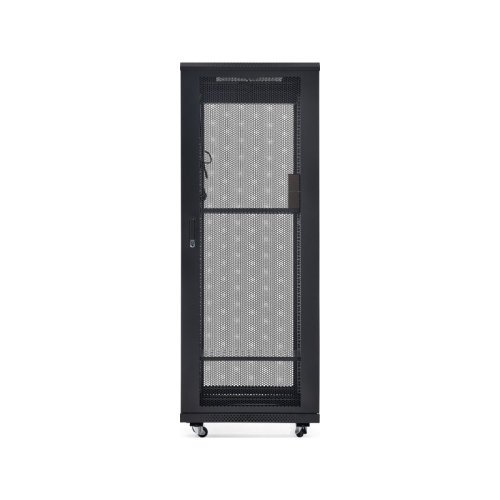

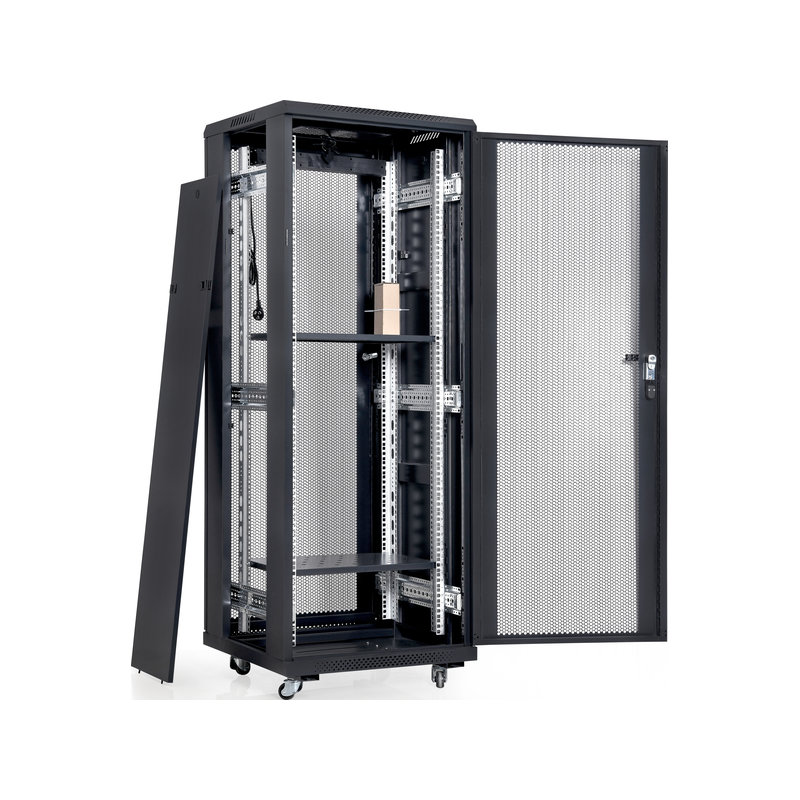

Premium Vented Structure
Engineered with premium front and rear highly perforated mesh ventilation profiles to substantially maximize passive thermal dispersion and optimize direct cooling paths for dense network hardware systems.
|

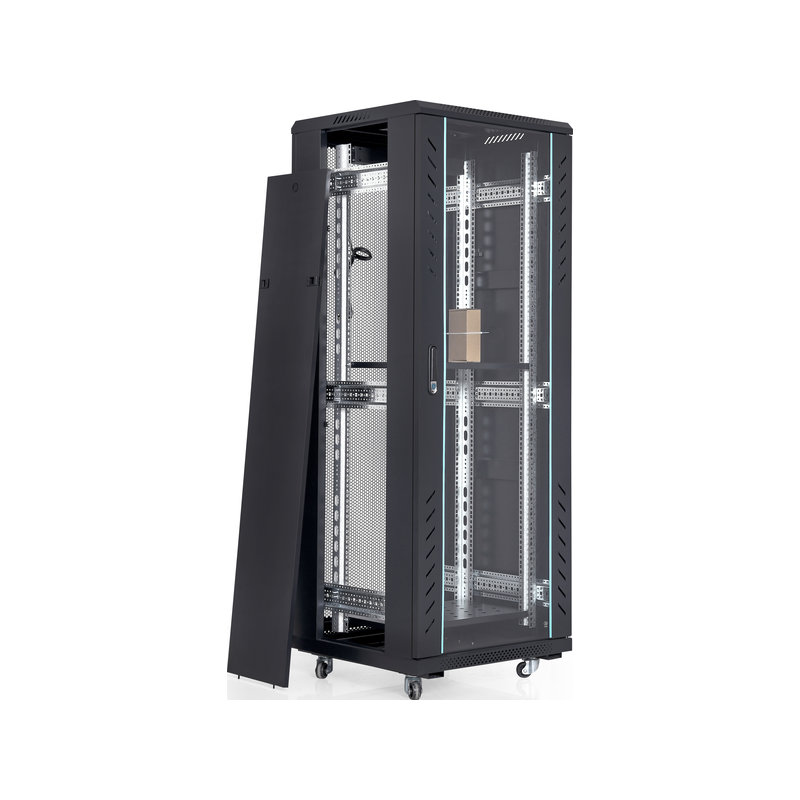

Lockable Anti-Tamper Panels
Features highly secure, independently lockable side maintenance panel profiles fitted with intuitive quick-release latches, seamlessly combining swift internal deployment access with maximum site security.
|
| Enclosure Architecture | KD (Knock-Down) Modular Flat-Pack Standalone Heavy-Duty Structure |
| Material Formulation | High-tensile SPCC premium cold-rolled steel plate engineering core |
| Vertical Mounting Grid | Anti-wear galvanized zinc-plated rails with clear silk-screened U markings |
| Front Monitoring Access | 5mm Toughened tempered safety glass integrated door with mesh borders and swing lock system |
| Side Maintenance Profile | Removable dual-split panel layout fitted with quick-release secure latches |
| Surface Management | Multi-stage degreasing, pickling, anti-rust phosphating, and powder coat finish |
| Static Load Rating | Up to 800 kg (1763 lbs) structural load capacity under uniform distribution |
| Cable Entry System | Multi-position brush-sealed routing pathways located on top cover and base plate |
| Grounding Protection | Integrated heavy-duty M6 grounding studs linking main frame and door panels |
| Ingress Protection Level | IP20 rating compliant, optimized for controlled internal environments |
| Part Number | Capacity | Size (mm) | CKD Pack | ||
|---|---|---|---|---|---|
| Width | Depth | Height | |||
| EH-NC-A-12W6D6 | 12U | 600 | 600 | 650 | 3 Cartons |
| EH-NC-A-18W6D6 | 18U | 900 | |||
| EH-NC-A-22W6D6 | 22U | 1100 | |||
| EH-NC-A-32W6D6 | 32U | 1600 | |||
| EH-NC-A-42W6D6 | 42U | 2000 | |||
| EH-NC-A-47W6D6 | 47U | 2200 | |||
* تتوفر خيارات التكوين المخصصة بالكامل (بما في ذلك العرض والعمق والهيكل العلوي متعدد التهوية ومقاطع الأبواب الشبكية البديلة عالية الكثافة) عبر طلبات الطلبات الفنية التجارية.
